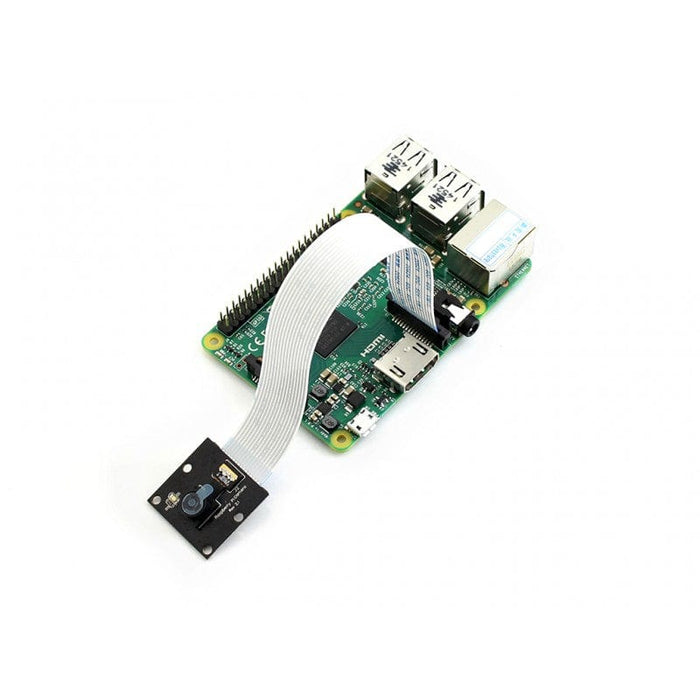

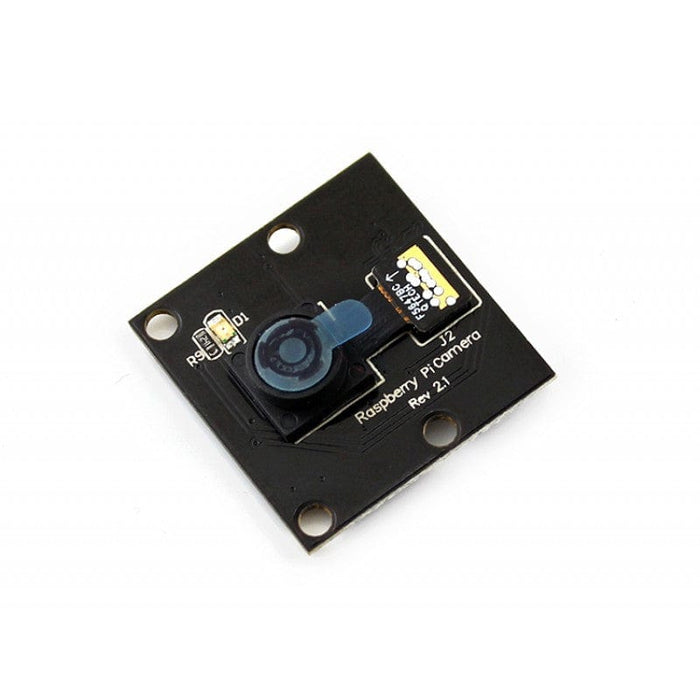

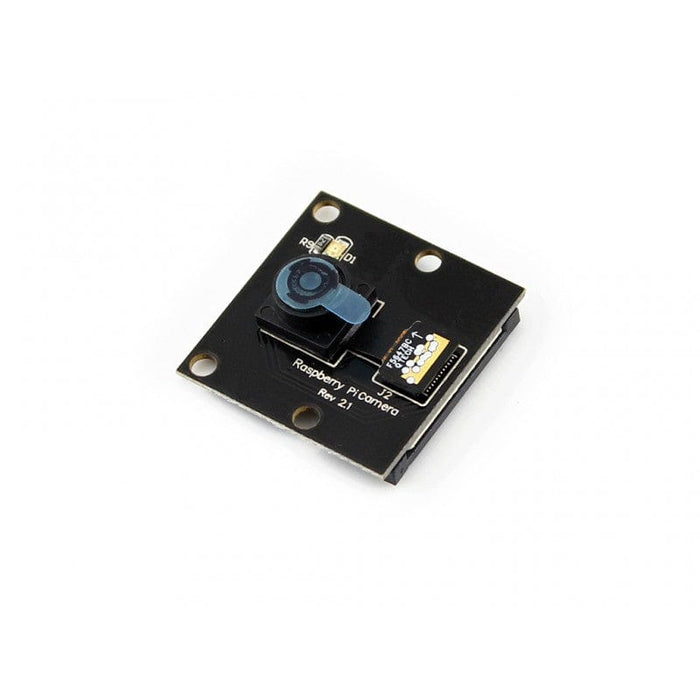

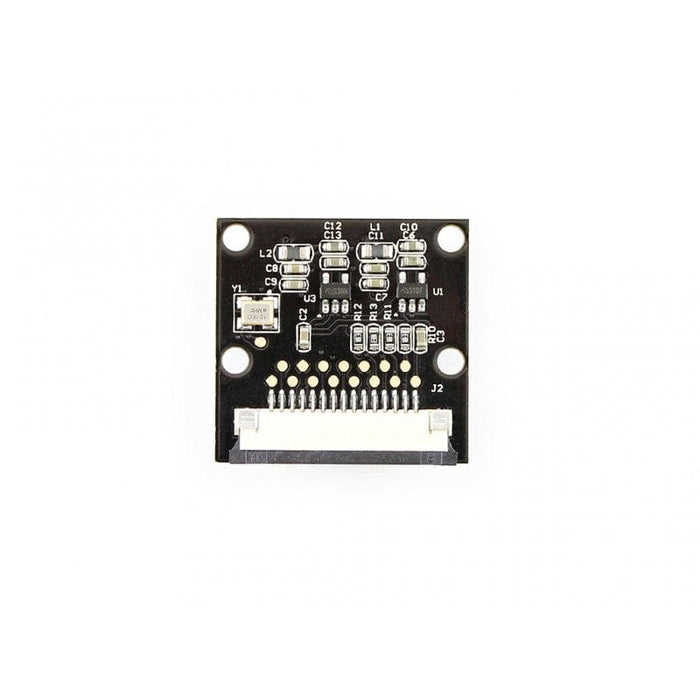

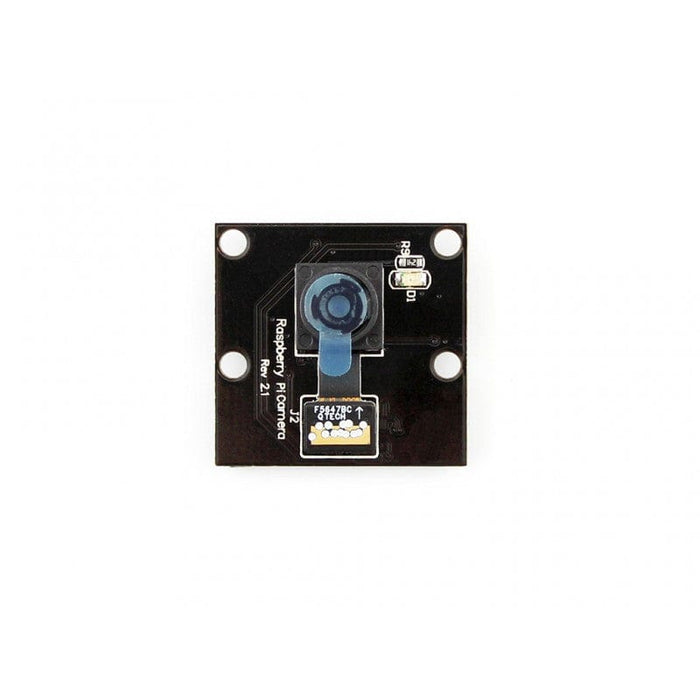

Raspberry Pi Camera Board - V1 (5MP) [Discontinued]

This is the original V1 Raspberry Pi camera module which utilises the OV5647 chip! It's therefore able to deliver a crystal clear 5MP resolution image, or 1080p HD video recording at 30fps! Please Note. The official V1 Camera is EOL - this is a 3rd party re-make module to the same specification.

Features:

• Raspberry Pi Camera, supports all revisions of the Pi
• 5 megapixel OV5647 sensor in a fixed-focus module
• Camera specifications
  • CCD size : 1/4 inch
  • Aperture (F) : 2.8
  • Focal Length : 3.37 mm
  • Diagonal : 72.4 degree
  • Sensor best resolution : 1080p
• 2592 × 1944 still picture resolution
• Support 1080p30, 720p60 and 640x480p60/90 video record
• Dimension: 25mm x 24mm x 9mm
